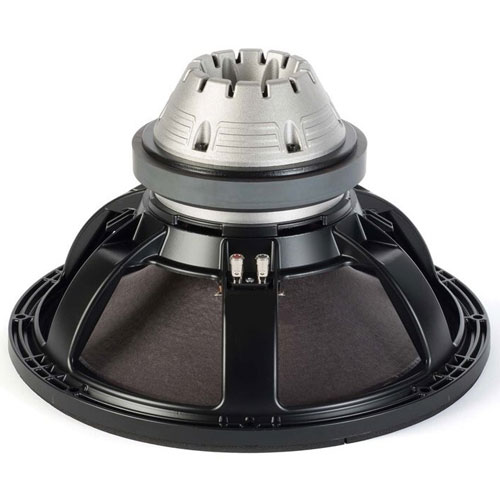

Woofer AA-18TLW3000

* MODEL NO.: 18TLW3000
* Nominal Diameter @ inch 18
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 1500
* Program Power @ watt 3000
* Sensitivity(1W/1m) @ dB 96
* Frequency Range @ Hz 35-2000
* Minimum Impedance @ ohm 5.7
* Voice Coil Diameter @ inch 4
* Voice Coil Material copper
* Voice Coil Former Material TIL
* Voice Coil Winding Depth @ mm 40
* Number of Layers 2
* Kind of Layer inside/outside
* Gap Height @ mm 8
* Magnet Weight @ oz 150
* Magnet Size @ mm 220*30
* Basket Material Die-cast Alu.
* Cone Material No pressed pulp
* Cone Design Straight
* Surround Material Polycotton
* Surround Design Triple roll
