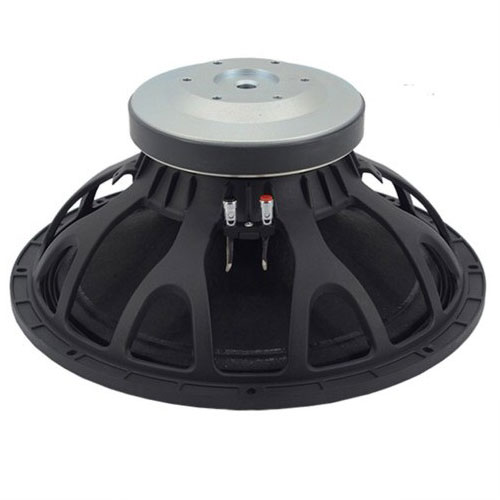

Woofer AA-18HP1030

* MODEL NO.: 18HP1030
* Nominal Diameter @ inch 18
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 1200
* Program Power @ watt 2400
* Sensitivity(1W/1m) @ dB 98
* Frequency Range @ Hz 35-2000
* Minimum Impedance @ ohm 5.1
* Voice Coil Diameter @ inch 4
* Voice Coil Material copper
* Voice Coil Former Material TIL
* Voice Coil Winding Depth @ mm 25
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 12
* Magnet Weight @ oz 125
* Magnet Size @ mm 220*25
* Basket Material Die-cast Alu.
* Cone Material No pressed pulp
* Cone Design Straight ribbed
* Surround Material Polycotton
* Surround Design Triple roll
