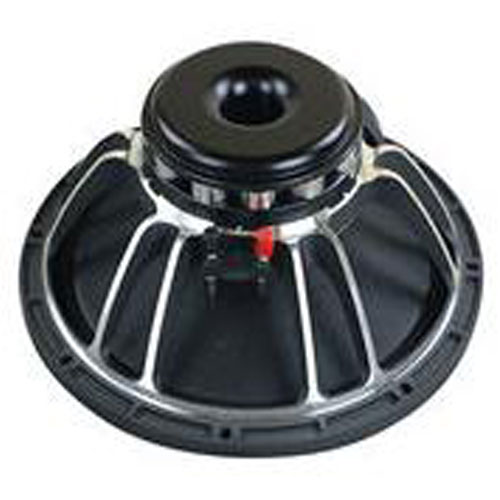

Woofer AA-12ND76

* MODEL NO.: 12ND76
* Nominal Diameter @ inch 12
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 300
* Program Power @ watt 600
* Sensitivity(1W/1m) @ dB 98
* Frequency Range @ Hz 65-4500
* Minimum Impedance @ ohm 6.5
* Voice Coil Diameter @ inch 3
* Voice Coil Material CCAW
* Voice Coil Former Material TIL
* Voice Coil Winding Depth @ mm 14
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 8
* Magnet Material NEO Poles
* Magnet Size @ mm 25*12
* Basket Material Die-cast Alu.
* Cone Material Semi press pulp
* Cone Design Curved
* Surround Material Polycotton
* Surround Design M – roll
