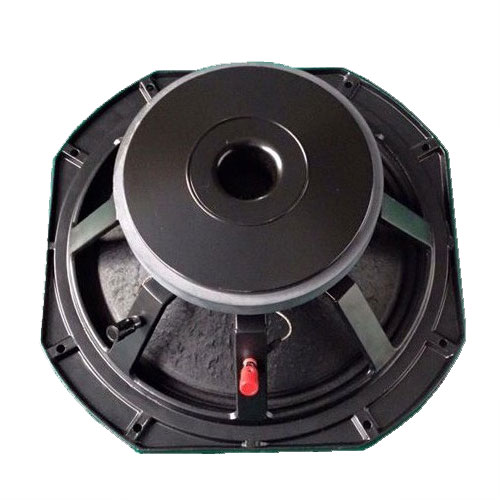

Woofer AA-10MB300

* MODEL NO.: 10MB300
* Nominal Diameter @ inch 10
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 300
* Program Power @ watt 600
* Sensitivity(1W/1m) @ dB 97
* Frequency Range @ Hz 65-5000
* Minimum Impedance @ ohm 6.5
* Voice Coil Diameter @ inch 2.5
* Voice Coil Material copper
* Voice Coil Former Material KAPTON
* Voice Coil Winding Depth @ mm 10
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 8
* Magnet Weight @ oz 60
* Magnet Size @ mm 170*20
* Basket Material Die-cast Aluminium
* Cone Material Semi pressed pulp
* Cone Design Curved
* Surround Material Polycotton
* Surround Design M – roll
