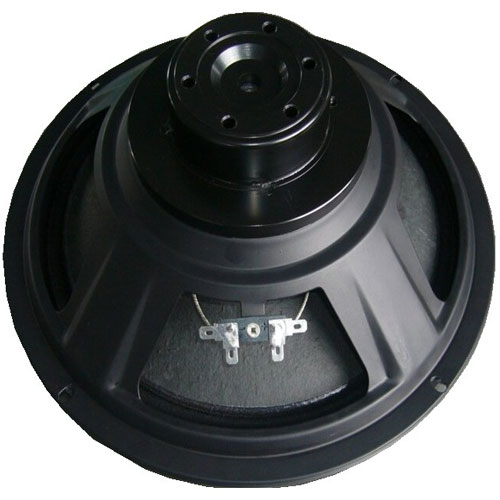

Woofer AA-TK10

* MODEL NO.: TK10
* Nominal Diameter @ inch 10
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 125
* Program Power @ watt 250
* Sensitivity(1W/1m) @ dB 97.5
* Frequency Range @ Hz 65-6000
* Minimum Impedance @ ohm 6.5
* Voice Coil Diameter @ inch 2
* Voice Coil Material CCAW
* Voice Coil Former Material KAPTON
* Voice Coil Winding Depth @ mm 14
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 8
* Magnet Material NEO inside slug
* Magnet Size @ mm 45*8
* Basket Material Pressed Steel
* Cone Material Semi press pulp
* Cone Design Curved
* Surround Material Polycotton
* Surround Design M – roll
