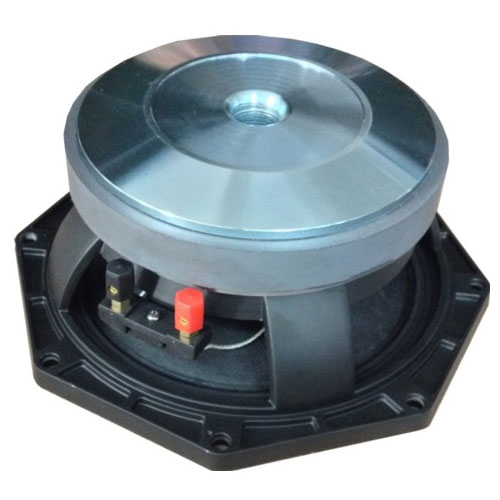

Woofer AA-8BC21

* MODEL NO.: 8BC21
* Nominal Diameter @ inch 8
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 250
* Program Power @ watt 500
* Sensitivity(1W/1m) @ dB 98
* Frequency Range @ Hz 75-7500
* Minimum Impedance @ ohm 7.2
* Voice Coil Diameter @ inch 2
* Voice Coil Material CCAW
* Voice Coil Former Material KAPTON
* Voice Coil Winding Depth @ mm 9.5
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 8
* Magnet Weight @ oz 50
* Magnet Size @ mm 156*80
* Basket Material Die-cast Aluminium
* Cone Material No pressed pulp
* Cone Design Curved
* Surround Material Polycotton
* Surround Design Triple roll
