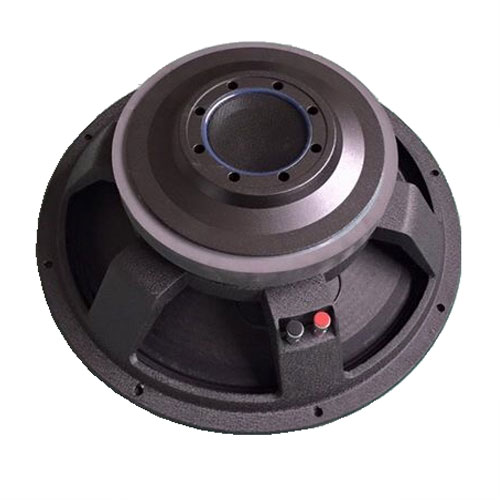

Woofer AA-15FD100

* MODEL NO.: 15FD100
* Nominal Diameter @ inch 15
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 600
* Program Power @ watt 1200
* Sensitivity(1W/1m) @ dB 97
* Frequency Range @ Hz 45-2000
* Minimum Impedance @ ohm 5.1
* Voice Coil Diameter @ inch 4
* Voice Coil Material copper
* Voice Coil Former Material KAPTON
* Voice Coil Winding Depth @ mm 22
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 10
* Magnet Weight @ oz 100
* Magnet Size @ mm 220*20
* Basket Material Die-cast Aluminium
* Cone Material No pressed pulp
* Cone Design Straight
* Surround Material Polycotton
* Surround Design Triple roll
