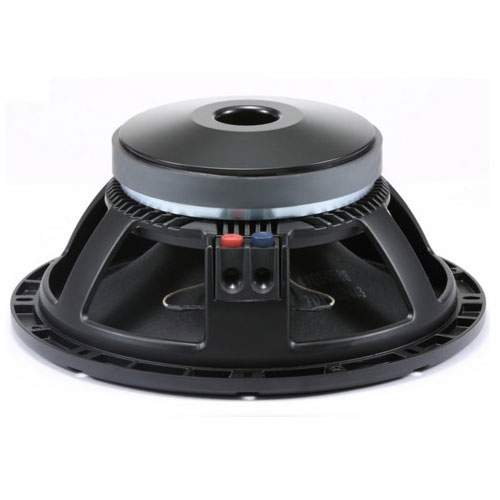

Woofer AA-12G301

* MODEL NO.: 12G301
* Nominal Diameter @ inch 12
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 450
* Program Power @ watt 900
* Sensitivity(1W/1m) @ dB 97
* Frequency Range @ Hz 50-3500
* Minimum Impedance @ ohm 5.8
* Voice Coil Diameter @ inch 3
* Voice Coil Material copper
* Voice Coil Former Material TIL
* Voice Coil Winding Depth @ mm 18
* Number of Layers 2
* Kind of Layer inside/outside
* Gap Height @ mm 8
* Magnet Weight @ oz 80
* Magnet Size @ mm 190*20
* Basket Material Die-cast Aluminium
* Cone Material Semi pressed pulp
* Cone Design Curved
* Surround Material Polycotton
* Surround Design M – roll
