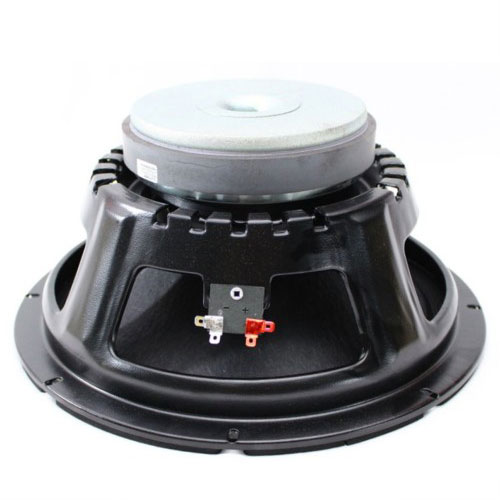

Woofer AA-12E200S

* MODEL NO.: 12E200S
* Nominal Diameter @ inch 12
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 200
* Program Power @ watt 400
* Sensitivity(1W/1m) @ dB 97
* Frequency Range @ Hz 55-4000
* Minimum Impedance @ ohm 6.5
* Voice Coil Diameter @ inch 2.5
* Voice Coil Material CCAW
* Voice Coil Former Material KAPTON
* Voice Coil Winding Depth @ mm 16
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 8
* Magnet Weight @ oz 50
* Magnet Size @ mm 156*20
* Basket Material Pressed Steel
* Cone Material Semi pressed pulp
* Cone Design Curved
* Surround Material Polycotton
* Surround Design M roll
