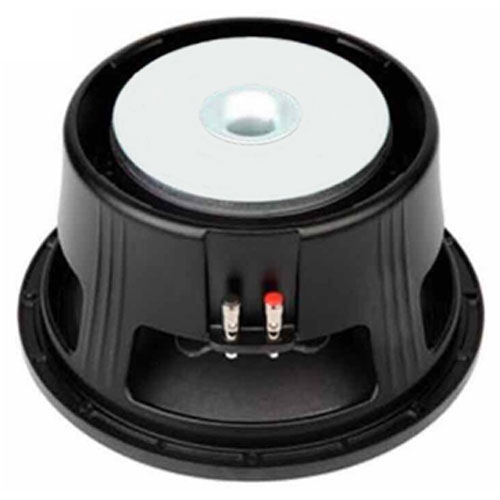

Woofer AA-12C300

* MODEL NO.: 12C300
* Nominal Diameter @ inch 12
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 300
* Program Power @ watt 600
* Sensitivity(1W/1m) @ dB 97.5
* Frequency Range @ Hz 55-4000
* Minimum Impedance @ ohm 6.5
* Voice Coil Diameter @ inch 3
* Voice Coil Material CCAW
* Voice Coil Former Material KAPTON
* Voice Coil Winding Depth @ mm 16
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 8
* Magnet Weight @ oz 80
* Magnet Size @ mm 180*25
* Basket Material Die-cast Aluminium
* Cone Material Semi pressed pulp
* Cone Design Curved
* Surround Material Polycotton
* Surround Design M roll
