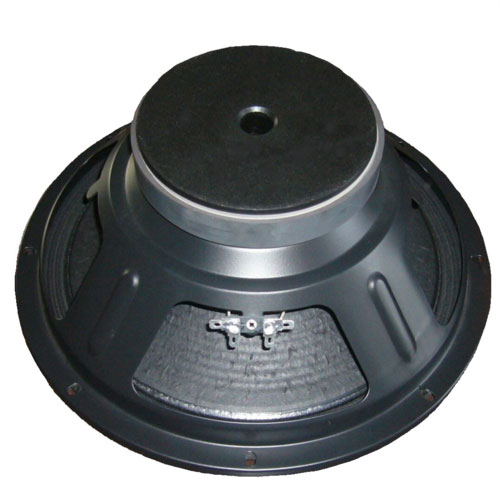

Woofer AA-12-200

* MODEL NO.: 12-200
* Nominal Diameter @ inch 12
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 200
* Program Power @ watt 400
* Sensitivity(1W/1m) @ dB 96
* Frequency Range @ Hz 55-5000
* Minimum Impedance @ ohm 6.8
* Voice Coil Diameter @ inch 2
* Voice Coil Material copper
* Voice Coil Former Material KAPTON
* Voice Coil Winding Depth @ mm 14
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 8
* Magnet Weight @ oz 40
* Magnet Size @ mm 140*20
* Basket Material Pressed Steel
* Cone Material No pressed pulp
* Cone Design Straight
* Surround Material Polycotton
* Surround Design Triple roll
