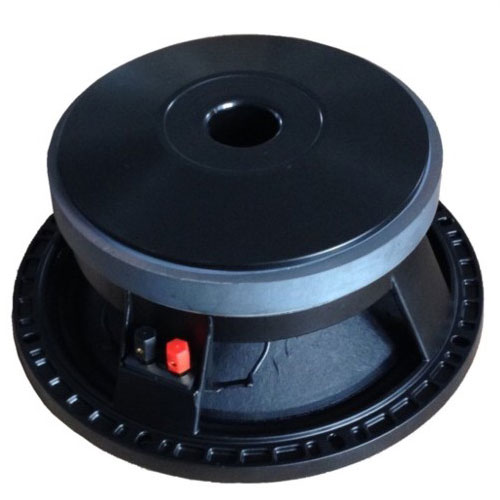

Woofer AA-10YK750

* MODEL NO.: 10YK750
* Nominal Diameter @ inch 10
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 350
* Program Power @ watt 700
* Sensitivity(1W/1m) @ dB 98.5
* Frequency Range @ Hz 65-5000
* Minimum Impedance @ ohm 5.4
* Voice Coil Diameter @ inch 3
* Voice Coil Material CCAW
* Voice Coil Former Material TIL
* Voice Coil Winding Depth @ mm 12
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 8
* Magnet Weight @ oz 80
* Magnet Size @ mm 190*20
* Basket Material Die-cast Aluminium
* Cone Material Semi pressed pulp
* Cone Design Curved
* Surround Material Polycotton
* Surround Design M – roll
