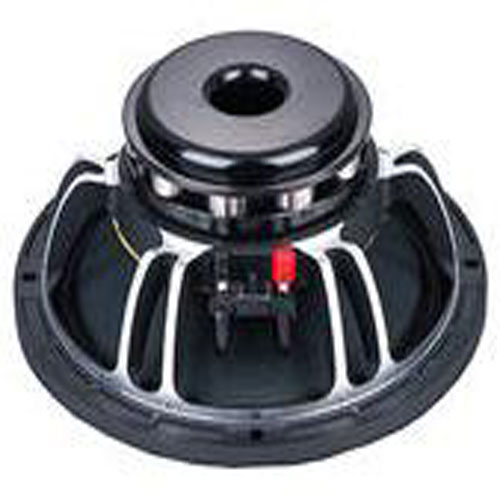

Woofer AA-10ND66

* MODEL NO.: 10ND66
* Nominal Diameter @ inch 10
* Rated Impedance @ ohm 8
* Power Handling Capacity @ watt 250
* Program Power @ watt 500
* Sensitivity(1W/1m) @ dB 97.5
* Frequency Range @ Hz 65-5500
* Minimum Impedance @ ohm 5.1
* Voice Coil Diameter @ inch 2.5
* Voice Coil Material CCAW
* Voice Coil Former Material KAP
* Voice Coil Winding Depth @ mm 12
* Number of Layers 2
* Kind of Layer outside
* Gap Height @ mm 8
* Magnet Material NEO
* Magnet Size @ mm 25*12
* Basket Material Die-cast Aluminium
* Cone Material Semi press pulp
* Cone Design Curved
* Surround Material Polycotton
* Surround Design M – roll
